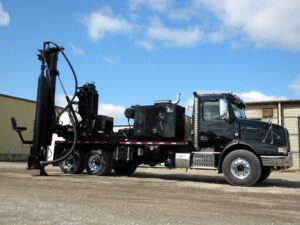

Self-Contained Pneumatic Rock Drill

• Drilling capacity from 4” diameter holes and up with variety of depth configurations available
• Steel flatbed with turntable, fore and aft movement
• Designed for rugged rock drilling
• Optional remote control

Heavy Duty Combination Driver Attachment

• Square hammer drop weight 1,000-1,500 lbs.
• Foot operates independent of Kelly bar
• Accepts up to 16” auger with foot – up to 42” auger without foot
• Rigid square tube design on driver frame
• High capacity oil system for continued fast hammer cycle time
• Standard post puller with heavy duty cylinder
• Post driver will handle guardrail post, up to and including 10×10 wood posts

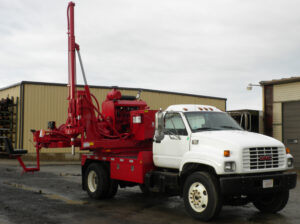

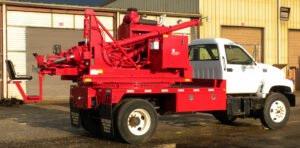

HD – 25 Pressure Digger

• Standard John Deere diesel engine
• Available with power shift or hydrostatic transmission
• Steel flatbed with stacked drive
• Turntable, fore and aft movement
• Large capacity oil system
• Accepts auger sizes up to 42”
• Kelly bar dimension 2.5” x 2.5” – Lengths 13-20’
• Optional rear outriggers
• Winch and pole setter packages

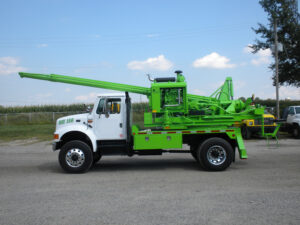

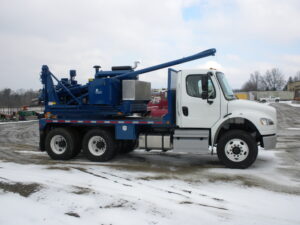

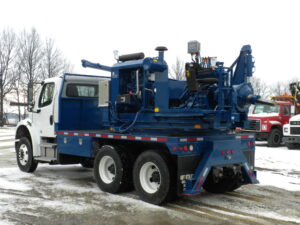

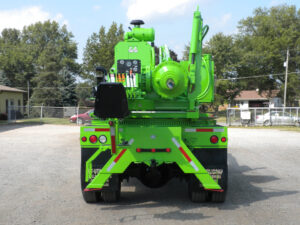

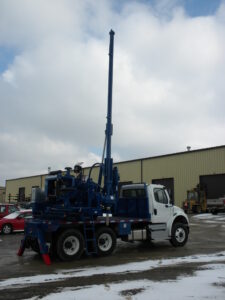

UTMD-30 Pressure Digger

• Standard John Deere 125 HP diesel engine – other diesel engines available
• Available with power shift hydrostatic transmission
• Steel flatbed with turntable ring
• 10.5″ “H” beam fore and aft frame with 42” travel
• Turntable with hydraulic stacked drive (motor, brake, planetary gear reduction)
• Large capacity hydraulic system
• Accepts augers up to 60” diameter (up to 72” in ideal conditions)
• Kelly bar 3”x3” – lengths up to 40’
• Optional rear and side outriggers
• Optional winch and pole setter packages

UTMD-30 Pressure Digger

• Standard John Deere 99 HP diesel engine – other diesel engines available
• Available with power shift or hydrostatic transmission
• Steel flatbed with turntable ring
• 3”x6” rectangular beam fore and aft frame with 42” of travel
• Turntable with hydraulic stacked drive (motor, brake, planetary gear reduction)
• Large capacity hydraulic system
• Accepts augers up to 50” diameter (up to 60” in ideal soil conditions)
• Kelly bar 3”x3” – lengths up to 25’
• Optional rear outriggers – “A” frame or corner mount
• Optional winch and pole setter packages
• A 3” kelly bar machine that can be mounted on a single axle truck and meet the legal axle weight limits

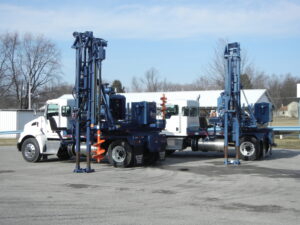

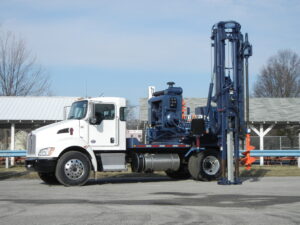

Self-Contained Post Driver Drill Attachment

• Post driver drill attachment model UT5060C or UT5072C mounts onto your self-contained post driver. Hole diameter range 6-18”; hole depth of 60” or 72”
• Side mounted drill uses hydraulic down pressure using planetary driven chain feed
• Drill has up to 5,000 foot lbs. of torque

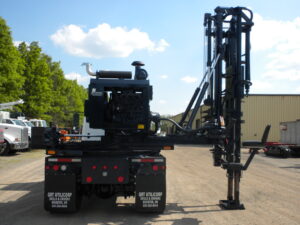

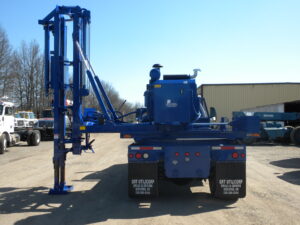

Self-Contained Post Driver With Hydraulic Vibratory Hammer

• 1,000 and 1,500 pound weight class demolition style hammers available
• Great for driving steel posts in difficult soil conditions
• Available with chain feed configuration with down pressure, or traditional gravity feed

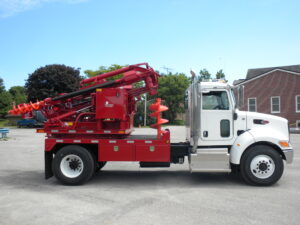

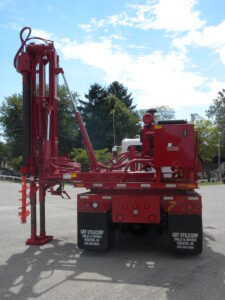

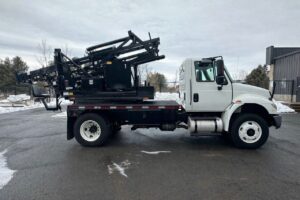

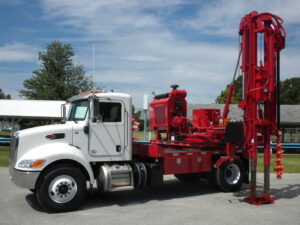

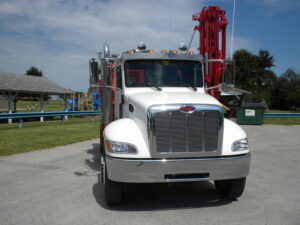

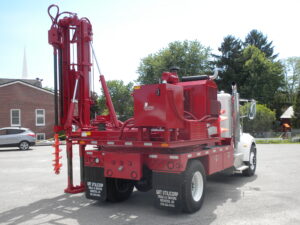

GRT Utilicorp. Inc. has developed the next generation post driver with a new frame design incorporating a compact swing radius eliminating overhang on the non-work side of the machine. Often this overhang poses the risk of hanging towards traffic, resulting in extra lane closures while the machine is at work. The Zero Tail Swing Post Driver shares all of the same features and quality customers have come to expect from GRT Utilicorp, Inc. since 1985, but with a refined turntable design that helps to solve the lane closures dilemmas of today.

• Single lift cylinder design
• John Deere diesel engine
• High capacity oil system with cooler
• 36” of fore and aft movement
• 245 degree turn table rotation with compact radius
• Zero tail swing eliminates counterweight overhang
• Standard heavy-duty post puller
• Drop hammer weight ranges from 1,000-2000 lbs.
• Optional hydraulic impact hammer available
• Optional auxiliary drill attachment available
• Will accept up to 10”x10” wood post with standard foot

Small Track Post Driver

GRT Utilicorp Inc. is proud to announce the introduction of the UTRTPD-10-15 track-mounted post driver. The machine is mounted on a heavy-duty rubber track assembly, making it one of the most versatile post drivers ever offered by GRT Utilicorp, Inc. The unit boasts a reliable and powerful Kubota diesel engine, a high capacity oil system and powerful vibratory demolition-style hammer to drive posts in even the toughest conditions. Fore and aft movement, as well as boom leveling capabilities, GRT Utilicorp, Inc. also leaves the option open to add a pneumatic rock drill assembly or side mounted auger drill.

One of the most exciting features of the track-mounted post driver is its compact size. The machine is capable of driving a post that is 15 feet tall. Its compact size also allows the suitable option of transporting with a pick-up truck and equipment trailer. The compressed size and off-road capabilities of the UTRTPD-10-15 allows the machine to work in smaller areas, thus reducing lane closures in ideal conditions and also making it ideal for use installing solar panels in the push to become a more environmentally-mindful society.

• Large capacity hydraulic pump system
• Fore and aft movement of 24”
• Single lift cylinder design
• 180 degrees of turn table movement
• Vibratory demolition-style hammer drives posts in difficult soil conditions
• Kubota diesel engine standard
• Lightweight and compact design leaves a small footprint
• Less on-road lane closures
• Optional post puller attachment
• Will handle a variety of posts up to and including 6×8 wood posts
• Will handle posts up to and including 15’ tall
• Convenient pick-up truck and equipment trailer transport
• Heavy-duty rubber or steel track assembly
• Off-road capabilities ideal for solar industry
• Optional pneumatic rock drill attachment
• Optional drill attachment for auger or screw pile installation

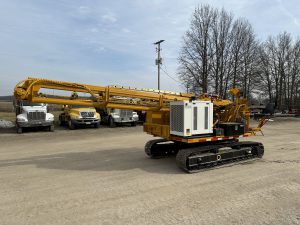

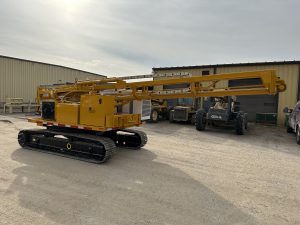

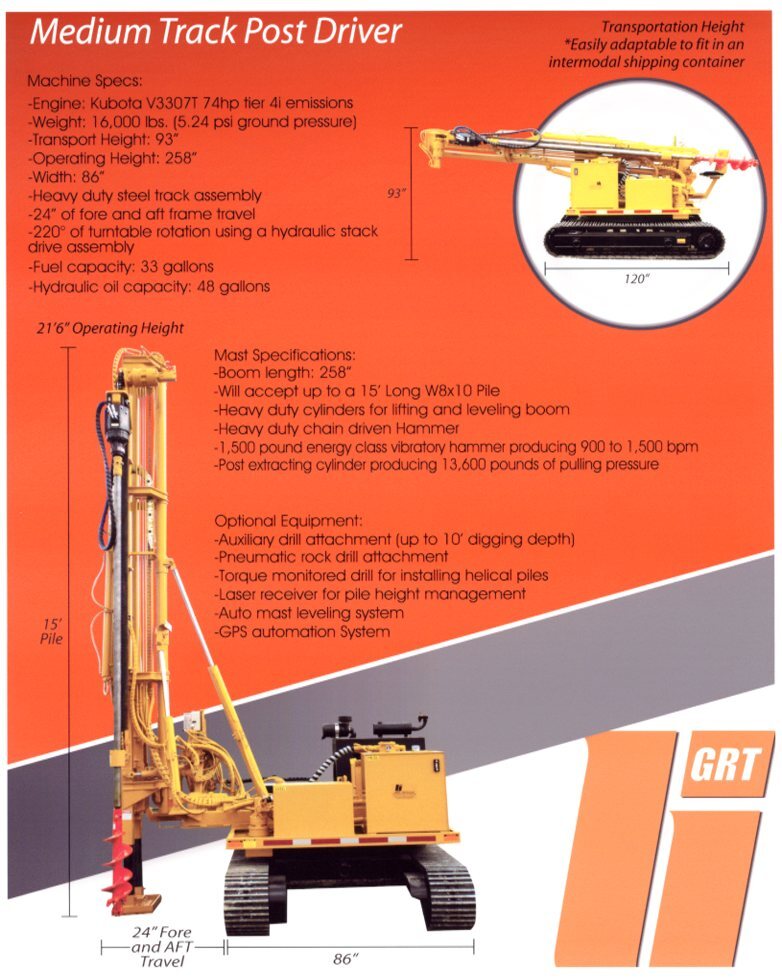

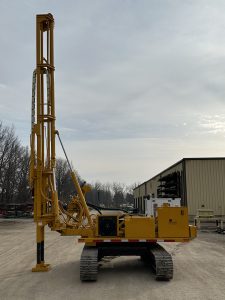

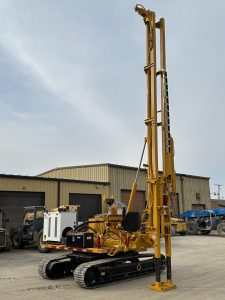

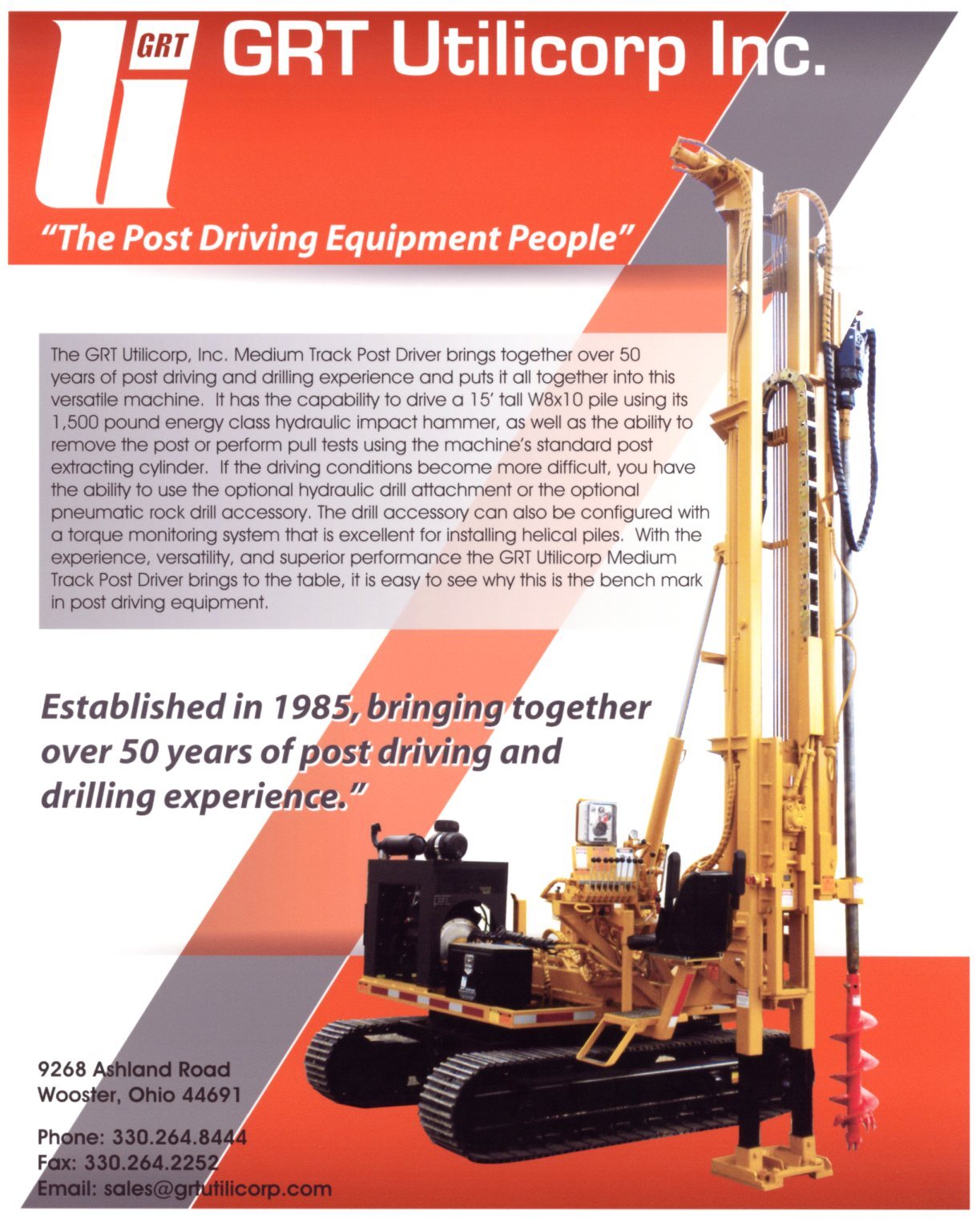

Medium Track Post Driver

The GRT Utilicorp Inc. Medium Track Post Driver brings together over 50 years of post driving and drilling experience and puts it all together into this versatile machine. It has the capability to drive a 20’ tall W8x10 pile using its 1,500 pound energy class hydraulic impact hammer, as well as the ability to remove the post or perform pull tests using the machine’s standard post extracting cylinder. If the driving conditions become more difficult, you have the ability to use the optional hydraulic drill attachment or the optional pneumatic rock drill accessory. The drill accessory can also be configured with a torque monitoring system that is excellent for installing helical piles. With the experience, versatility, and superior performance the GRT Utilicorp Medium Track Post Driver brings to the table, it is easy to see why this is the bench mark in post driving equipment.

Machine Specifications

• Engine: 4-Cylinder Diesel Engine
• Weight: 17,000 lbs. (6.34 psi ground pressure)
• Transport Height: 96″
• Operating Height: 329″
• Width: 86”
• Heavy duty steel track assembly
• 24” of fore and aft frame travel
• 220 degree of turntable rotation using a hydraulic stack drive assembly
• Fuel capacity: 33 gallons
• Hydraulic oil capacity: 48 gallons

Mast Specifications

• Boom length: 329″
• Will accept up to a 20’ long W8x10 pile
• Heavy duty cylinders for lifting and leveling boom
• Heavy duty chain driven hammer
• 1,500 pound energy class vibratory hammer producing 900 to 1,500 bpm
• Post extracting cylinder producing 13,600 pounds of pulling pressure

Optional Equipment

• Auxiliary drill attachment (up to 10’ digging depth)
• Pneumatic rock drill attachment
• Torque monitored drill for installing helical piles
• Laser receiver for pile height management
• Auto mast leveling system
• GPS automation system

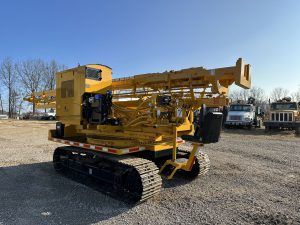

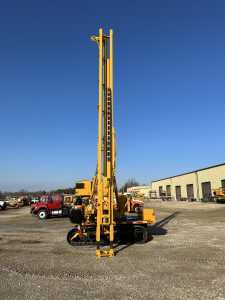

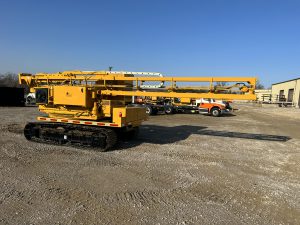

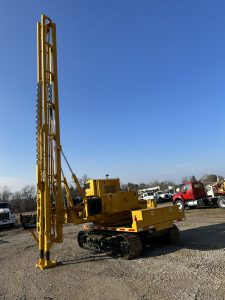

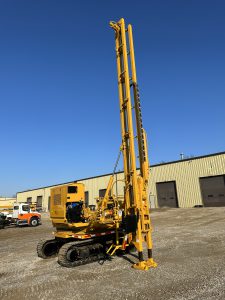

Large Track Mounted Post Driver

• Off-road capabilities are ideal for highway median or solar panel post driving
• Standard John Deere 115HP diesel engine
• High capacity hydraulic oil system with oil cooler
• Heavy duty track and undercarriage assembly
• Vibratory demolition-style hammer drives posts in difficult soil conditions
• Chain driven hammer feed system
• Standard heavy-duty post pulling cylinder
• Fore and aft frame travel of 36″
• Turntable frame movement of 240 degrees using a hydraulic stacked drive assembly
• Optional boom lengths will accept and drive steel posts up to 24’ tall
• Optional side mounted hydraulically driven drill available
• Optional auto-level and GPS system available
• Optional pneumatic rock drill attachment available
