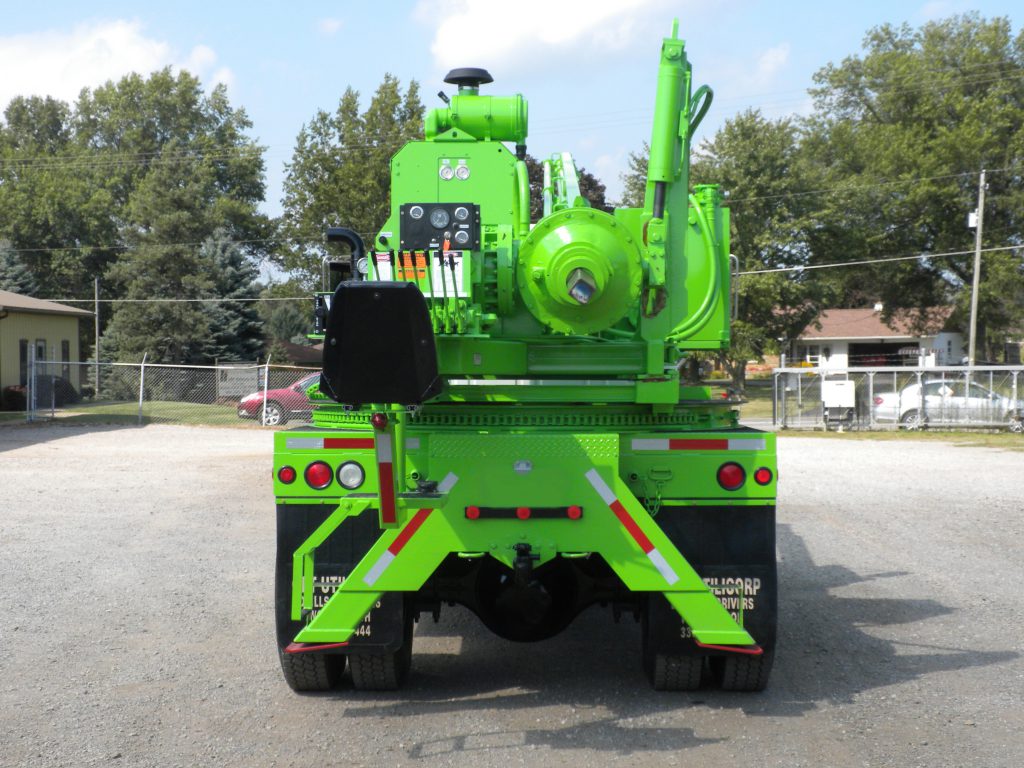

UTMD-30 Pressure Digger
UTMD-30 Pressure Digger
- Standard John Deere 99 HP diesel engine – other diesel engines available
- Available with power shift or hydrostatic transmission
- Steel flatbed with turntable ring
- 3”x6” rectangular beam fore and aft frame with 42” of travel
- Turntable with hydraulic stacked drive (motor, brake, planetary gear reduction)
- Large capacity hydraulic system
- Accepts augers up to 50” diameter (up to 60” in ideal soil conditions)
- Kelly bar 3”x3” – lengths up to 25’
- Optional rear outriggers – “A” frame or corner mount
- Optional winch and pole setter packages
- A 3” kelly bar machine that can be mounted on a single axle truck and meet the legal axle weight limits
